4.5 Characteristics of Molecules

Learning Objectives

  1. Determine the molecular mass of a molecule.
  2. Predict the general shape of a simple covalent molecule.

Unlike the ions in ionic compounds, which are arranged in lattices called crystals, molecules of covalent compounds exist as discrete units with a characteristic mass and a certain three-dimensional shape.

Molecular Mass

The mass of a molecule—the molecular massThe mass of a molecule, which is the sum of the masses of its atoms. (sometimes called the molecular weight)—is simply the sum of the masses of its atoms. As with formula masses, it is important that you keep track of the number of atoms of each element in the molecular formula to obtain the correct molecular mass. (For more information about formula masses, see Chapter 3 "Ionic Bonding and Simple Ionic Compounds", Section 3.5 "Formula Mass".)

Example 7

What is the molecular mass of each covalent compound?

  1. H2O
  2. C6H6
  3. NO2
  4. N2O5

Solution

Use the masses of the atoms from the periodic table in Chapter 21 "Appendix: Periodic Table of the Elements".

  1. The molecular formula H2O indicates that there are two hydrogen atoms and one oxygen atom in each molecule. Summing the masses of these atoms,

    2 H: 2 × 1.01 = 2.02 u
    1 O: + 16.00 u
    Total: 18.02 u

    The molecular mass of H2O is 18.02 u.

  2. 6 C: 6 × 12.01 = 72.06 u
    6 H: 6 × 1.01 = + 6.06 u
    Total: 78.12 u

    The molecular mass of C6H6 is 78.12 u.

  3. 1 N: 14.01 u
    2 O: 2 × 16.00 = + 32.00 u
    Total: 46.01 u

    The molecular mass of NO2 is 46.01 u.

  4. 2 N: 2 × 14.01 = 28.02 u
    5 O: 5 × 16.00 = + 80.00 u
    Total: 108.02 u

    The molecular mass of N2O5 is 108.02 u. (Note that the two different nitrogen and oxygen compounds in these examples have different molecular masses.)

Skill-Building Exercise

What is the molecular mass of each covalent compound?

  1. C2H2

  2. CO

  3. CO2

  4. BF3

Molecular Shape: VSEPR Theory

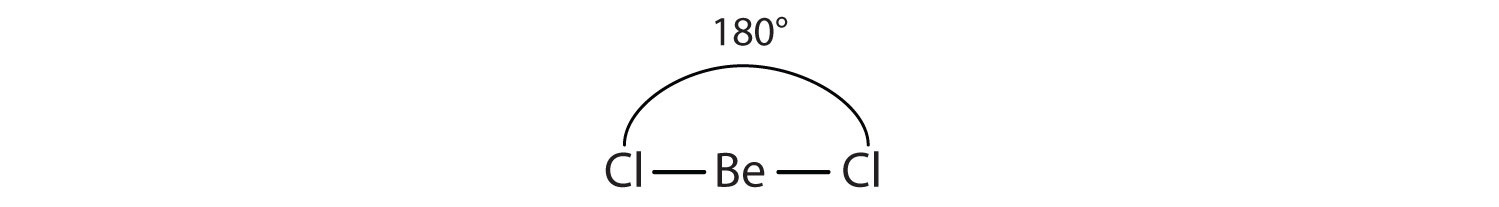

Unlike ionic compounds, with their extended crystal lattices, covalent molecules are discrete units with specific three-dimensional shapes. The shape of a molecule is determined by the fact that covalent bonds, which are composed of negatively charged electrons, tend to repel one another. This concept is called the valence shell electron pair repulsion (VSEPR)The general concept that estimates the shape of a simple molecule. theory. For example, the two covalent bonds in BeCl2 stay as far from each other as possible, ending up 180° apart from each other. The result is a linear molecule:

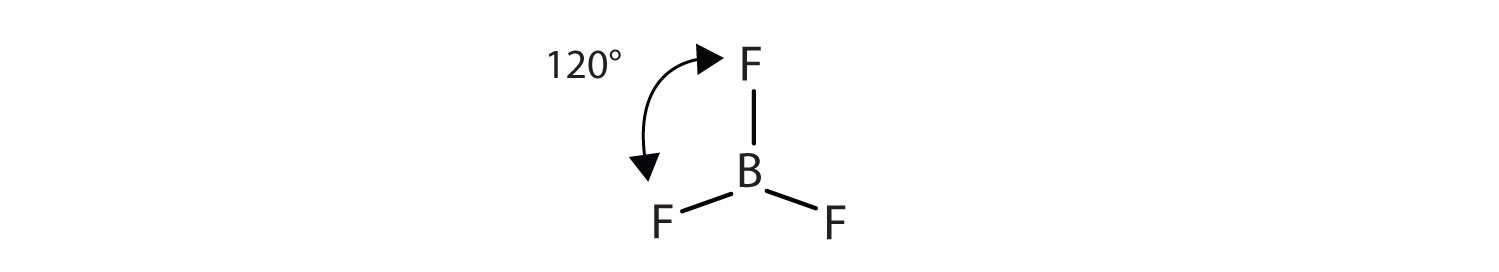

The three covalent bonds in BF3 repel each other to form 120° angles in a plane, in a shape called trigonal planar:

The molecules BeCl2 and BF3 actually violate the octet rule; however, such exceptions are rare and will not be discussed in this text.

Note

Try sticking three toothpicks into a marshmallow or a gumdrop and see if you can find different positions where your “bonds” are farther apart than the planar 120° orientation.

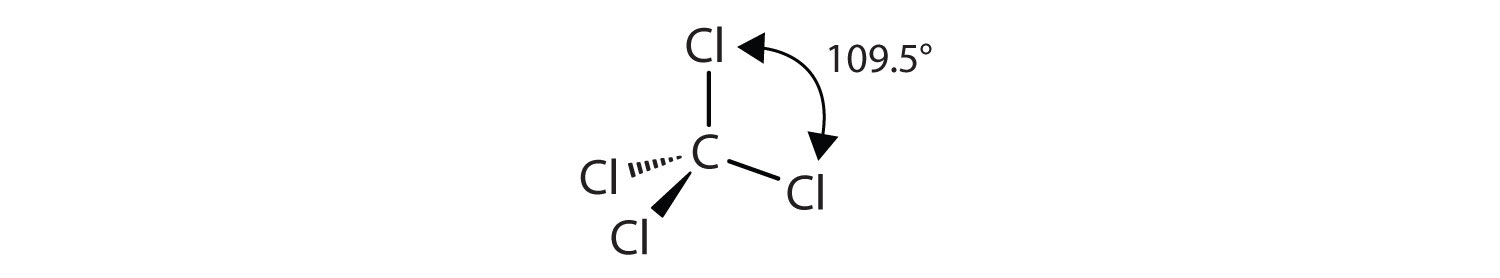

The four covalent bonds in CCl4 arrange themselves three dimensionally, pointing toward the corner of a tetrahedron and making bond angles of 109.5°:

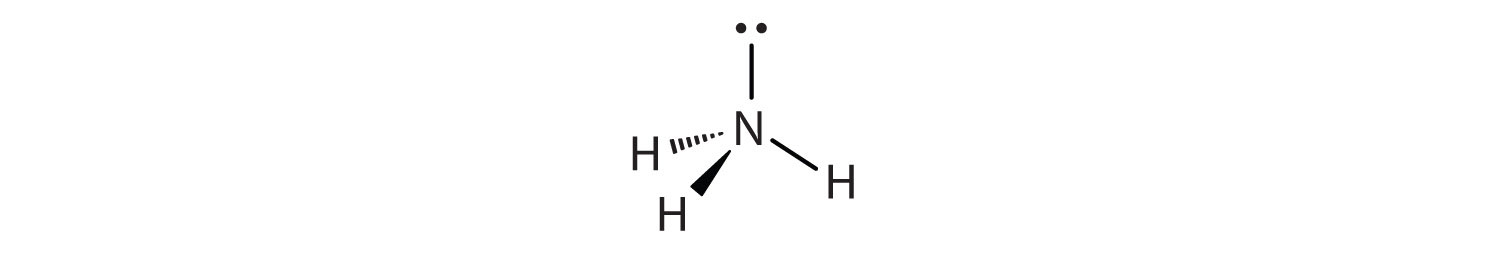

Molecules with lone electron pairs around the central atom have a shape based on the position of the atoms, not the electron pairs. For example, NH3 has one lone electron pair and three bonded electron pairs. These four electron pairs repel each other and adopt a tetrahedral arrangement:

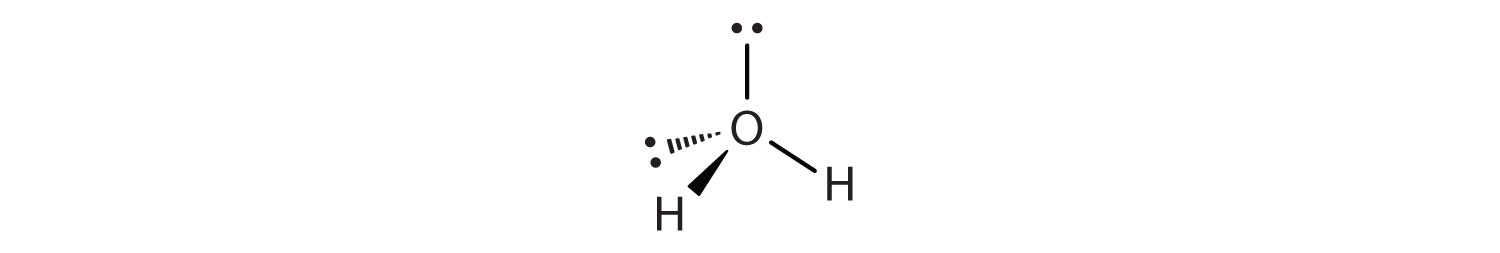

However, the shape of the molecule is described in terms of the positions of the atoms, not the lone electron pairs. Thus, NH3 is said to have a pyramidal shape, not a tetrahedral one. Similarly, H2O has two lone pairs of electrons around the central oxygen atom, in addition to the two bonded pairs:

Although the four electron pairs adopt a tetrahedral arrangement due to repulsion, the shape of the molecule is described by the positions of the atoms only. The shape of H2O is bent.

In determining the shapes of molecules, it is useful to first determine the Lewis diagram for a molecule. The shapes of molecules with multiple bonds are determined by treating the multiple bonds as one bond. Thus, CH2O has a shape similar to that of BF3:

Example 8

Describe the shape of each molecule.

  1. PCl3
  2. CO2

Solution

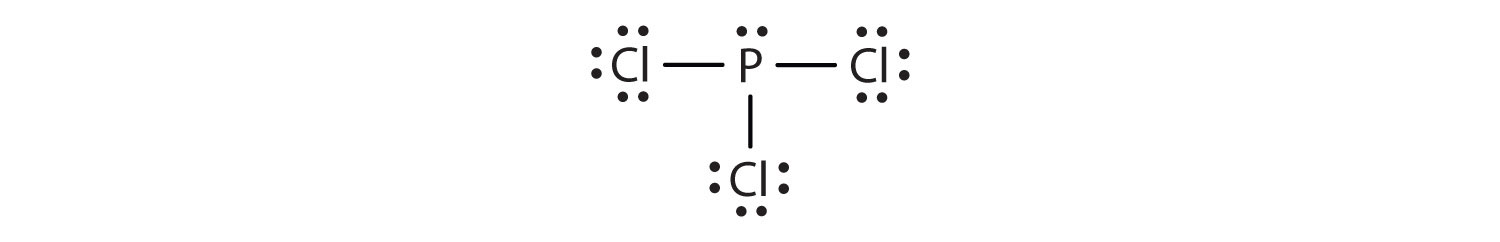

  1. The Lewis diagram for PCl3 is as follows:

    The four electron pairs arrange themselves tetrahedrally, but the lone electron pair is not considered in describing the molecular shape. Like NH3, this molecule is pyramidal.

  2. The Lewis diagram for CO2 is as follows:

    The multiple bonds are treated as one group. Thus, CO2 has only two groups of electrons that repel each other. They will direct themselves 180° apart from each other, so CO2 molecules are linear.

Skill-Building Exercise

Describe the shape of each molecule.

  1. CBr4

  2. BCl3

Concept Review Exercises

  1. How do you determine the molecular mass of a covalent compound?

  2. How do you determine the shape of a molecule?

Answers

  1. The molecular mass is the sum of the masses of the atoms in the formula.

  2. The shape of a molecule is determined by the position of the atoms, which in turn is determined by the repulsion of the bonded and lone electron pairs around the central atom.

Key Takeaways

  • A molecule has a certain mass, called the molecular mass.
  • Simple molecules have geometries that can be determined from VSEPR theory.

Exercises

  1. What is the molecular mass of each compound?

    1. H2S
    2. N2O4
    3. ICl3
    4. HCl
  2. What is the molecular mass of each compound?

    1. O2F2
    2. CCl4
    3. C6H6
    4. SO3
  3. Aspirin (C9H8O4) is a covalent compound. What is its molecular mass?

  4. Cholesterol (C27H46O) is a biologically important compound. What is its molecular mass?

  5. What is the shape of each molecule?

    1. H2S
    2. COCl2
    3. SO2
  6. What is the shape of each molecule?

    1. NBr3
    2. SF2
    3. SiH4
  7. Predict the shape of nitrous oxide (N2O), which is used as an anesthetic. A nitrogen atom is in the center of this three-atom molecule.

  8. Predict the shape of acetylene (C2H2), which has the two carbon atoms in the middle of the molecule with a triple bond. What generalization can you make about the shapes of molecules that have more than one central atom?

Answers

    1. 34.62 u
    2. 92.02 u
    3. 233.25 u
    4. 36.46 u
  1. 180.17 u

    1. bent
    2. trigonal planar
    3. bent
  2. bent
